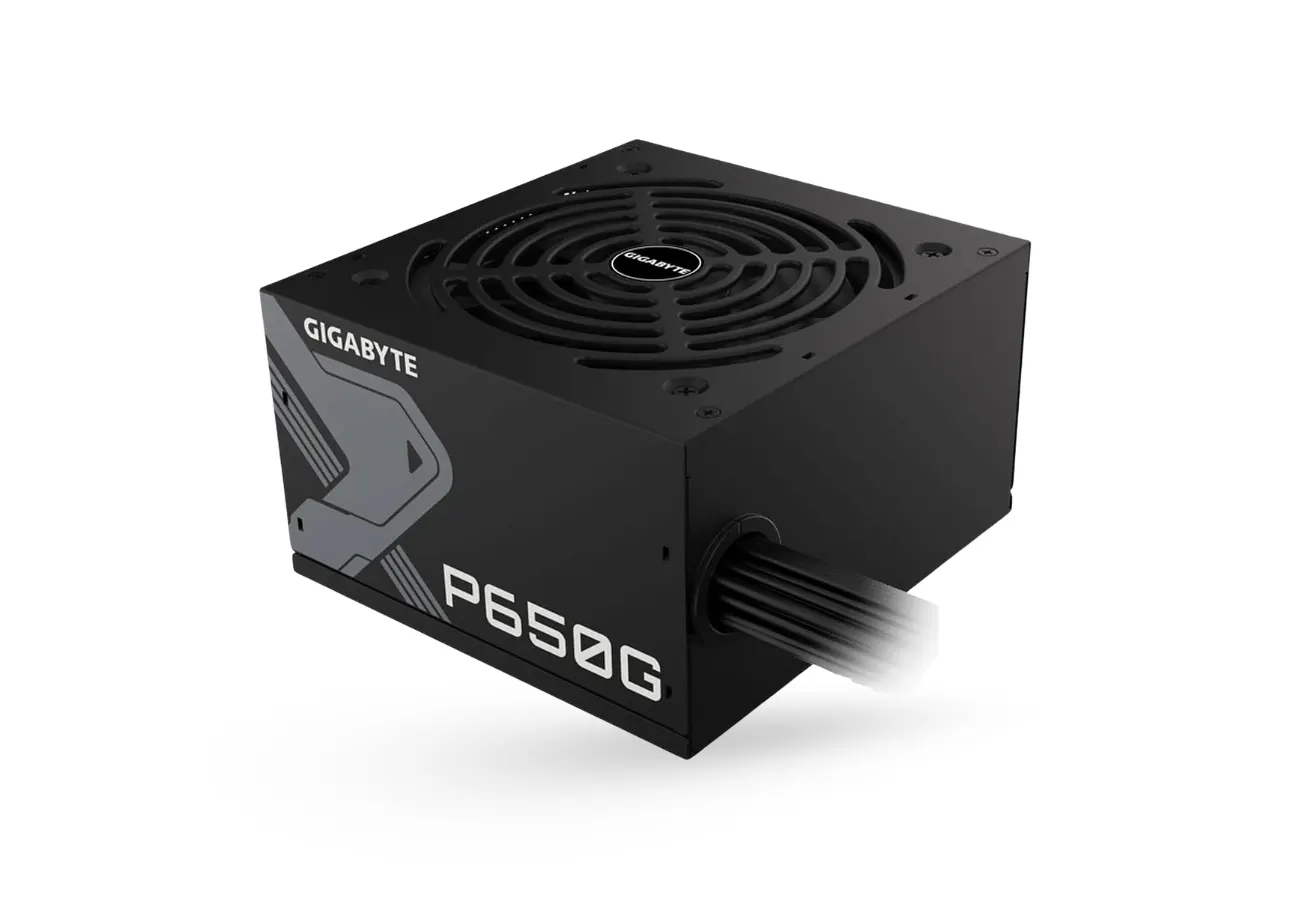

Description
- +12V Rail: Single, 54A, 648W, provides stable power output and compatibility with hardware components,
- FAN: 120mm Hydraulic Bearing, optimizes noise reduction and thermal performance. It automatically changes speed as per power demand, ensuring a longer and more stable lifespan,
- Efficiency: The P650B is 80 Plus Gold certified, it can deliver upto 90% efficiency.
- 100% Japanese Capacitors: ensuring high-quality components for efficient performance and longer reliability.
- ErP LOT6 2013 Compliance: It meets the ErP LOT6 2013 standard, consuming less than 0.5W in standby mode.
- Reliable Mesh Braided Cable: The mesh cable design not only reduces clutter inside your case but also improves airflow.
- Connector Pins: 1x Motherboard, 1x CPU, 4x PCIe, 6x SATA, 3x Peripheral, 1x Optical Drive,
- Protection: OCP, OTP, OVP, OPP, UVP, SCP, OCP (Over Current Protection), OTP (Over Temperature Protection), OVP (Over Voltage Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), and SCP (Short Circuit Protection),
- Size: ATX,
- MODEL: GP-P650B,
- Gigabyte Warranty: 3 Years,
| Model | GP-P650G |
|---|---|
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 9-4A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 650W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 600mm CPU/EPS 4+4 Pin x 2 : 600mm + 150mm PCI-e 6+2 Pin x 4 : 500mm + 150mm SATA x 6 : 500mm + 150mm + 150mm 4 Pin Peripheral x 3 : 500mm + 150mm + 150mm |
