Description

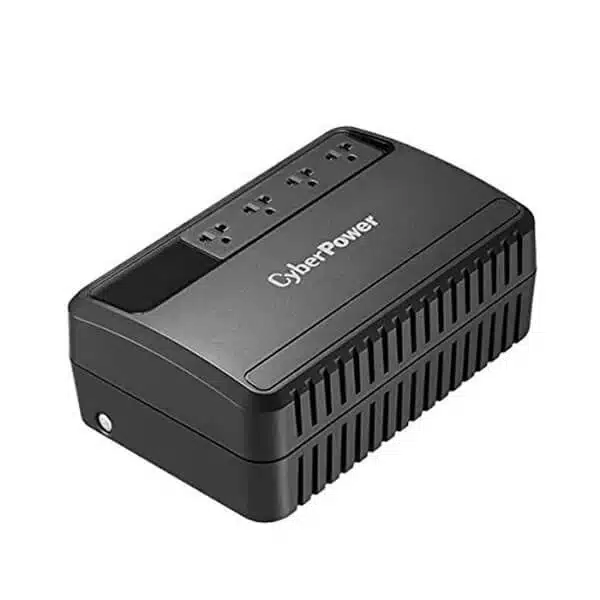

Designed to meet the rigorous demands of modern computing, the CyberPower UPS 1000VA (Upto 600 Watts) is a vital addition to any enthusiast’s build, ensuring you never have to compromise on performance.
Quality assurance is at the forefront of this design. Each unit undergoes rigorous factory testing to ensure maximum reliability, longevity, and flawless compatibility with a wide ecosystem of PC hardware.
Advanced Features
- Peak Performance: Engineered to eliminate bottlenecks and keep your system running smooth.
- Rigorous Quality Assurance: Backed by strict factory testing and quality control standards.
- Modern Aesthetic: Features a sleek design that perfectly complements any custom rig.
- Seamless Compatibility: Strictly tested to work flawlessly with a wide range of PC builds.
- Plug & Play Ready: Intuitive design makes installation and setup incredibly straightforward.
Technical Specifications
| General | |
| Phase | Single Phase |
| Form Factor | Desktop |
| UPS Topology | Line-interactive |
| Input | |
| Generator Compatibility | Yes |
| Nominal Input Voltage ( Vac ) | 220 ± 10% |
| Input Voltage Range ( Vac ) | 140 ~ 300 |
| Input Frequency ( Hz ) | 50 ± 10 60 ± 10 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current ( A ) | 4.55 |
| Input Connector Type | IN/ZA |
| Power Cord Length (ft.) | 4 |
| Power Cord Length (m.) | 1.2 |
| Output | |
| Capacity (VA) | 1000 |
| Capacity (Watts) | 600 |
| On Battery Waveform | Simulated Sine Wave |
| On Battery Voltage(s) ( Vac ) | 220 ± 10% |
| On Battery Frequency ( Hz ) | 50 ± 1% 60 ± 1% |
| Automatic Voltage Regulation (AVR) | Double Boost, Single Buck |
| Overload Protection | Circuit Breaker |
| Outlet(s) – Total | 4 |
| Outlet Type | IN/ZA x 4 |
| Outlet(s) – Battery Backup | 4 |
| Typical Transfer Time ( ms ) | 4 |
| Battery | |
| Typical Recharge Time ( Hours ) | 8 |
| Start On Battery | Yes |
| User-replaceable | No |
| Battery Type | Sealed Lead-acid |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| LED Indicators | Power On, Line Mode, Battery Mode, Low Battery |
| Audible Alarms | Battery Mode, Low Battery, Overload, UPS Fault |
| Physical | |
| Enclosure Construction | Plastic |
| Color | Black |
| Physical Size – UPS Module | |
| Dimensions (WxHxD) (in.) | 7.48 x 4.35 x 11.42 |
| Dimensions (WxHxD) (mm.) | 190 x 110.5 x 290 |
| Weight (lbs.) | 15.21 |
| Weight (kg.) | 6.9 |
| Shipping Dimensions | |
| Dimensions (WxHxD) (in.) | 6.3 x 10.4 x 13.3 |
| Dimensions (WxHxD) (mm.) | 161 x 265 x 338 |
| Weight (lbs.) | 15.7 |
| Weight (kg.) | 7.12 |
| Environmental | |
| Operating Temperature (°F) | 32 ~ 104 |
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 90 |
| Operating Elevation ( feet/meters ) | 0-9,843 feet (0-3,000 meters) |
| Storage Temperature (°F) | -4 ~ 122 |
| Storage Temperature (°C) | -20 ~ 50 |
| Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 90 |
| Storage Elevation ( feet/meters ) | 0-9,843 feet (0-3,000 meters) |
| Online Thermal Dissipation ( BTU/hr ) | 45 |
| Certifications | |
| Certifications | BIS |
| RoHS | Yes |
| WARRANTY | |
| Product Warranty Period (Year) | 2 Years |
| Battery Warranty Period (Year) | 1 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Note: Product features, specifications, and physical appearance are subject to change without notice due to manufacturer updates. Please verify compatibility with your system before purchase.
